Vinn & Gordon

Leading the way in pump manufacturing

• These robust centrifugal pumps are engineered for optimal performance across a diverse range of fluid transfer applications, including dewatering, sewage bypass, drainage, irrigation, and chiller plant circulation. Featuring a standardized suction and discharge port , each unit is equipped with a high-efficiency closed-type impeller and a durable mechanical seal. An open-type impeller configuration is also available to accommodate specific application requirements.

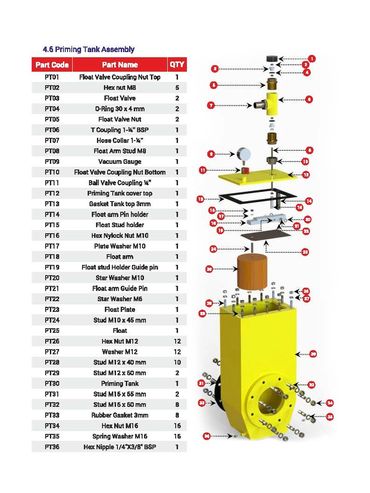

• The priming tank is constructed from high-grade Mild Steel or Stainless Steel, with an Aluminium option available. Internal components are meticulously fabricated from Teflon and Stainless Steel, significantly extending the pump's operational lifespan and enhancing its hydraulic efficiency. The volute casing, precision-cast from iron (with Stainless Steel as an alternative), is aerodynamically designed to optimize fluid flow and maximize discharge capacity. All critical internal components, including the shaft, impeller, and stuffing box, are manufactured from corrosion-resistant stainless steel.

• Vinn & Gordon specializes in the bespoke manufacturing of pumps tailored to precise customer specifications. Our product portfolio encompasses open impeller pumps, electric motor-driven pumps, available in 2-wheel or 4-wheel mobile configurations, skid-mounted units, and various Materials of Construction (MOC) to meet diverse operational demands.

              Features and Benefits

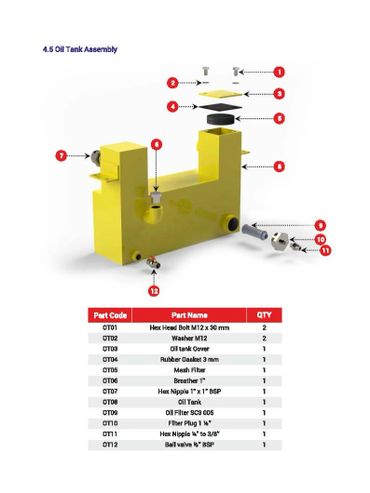

• Simplified maintenance protocols, primarily involving routine checks of oil levels and filtration systems.
• Designed for efficient handling of sewage, slurries, and liquids containing solids.
• Incorporates a dry-running, high-pressure liquid bath double mechanical seal, featuring highly abrasion-resistant solid silicon carbide faces.
• A robust centrifugal pump integrated with a Dri-Prime self-priming system, directly coupled to either a diesel engine or an electric motor.
